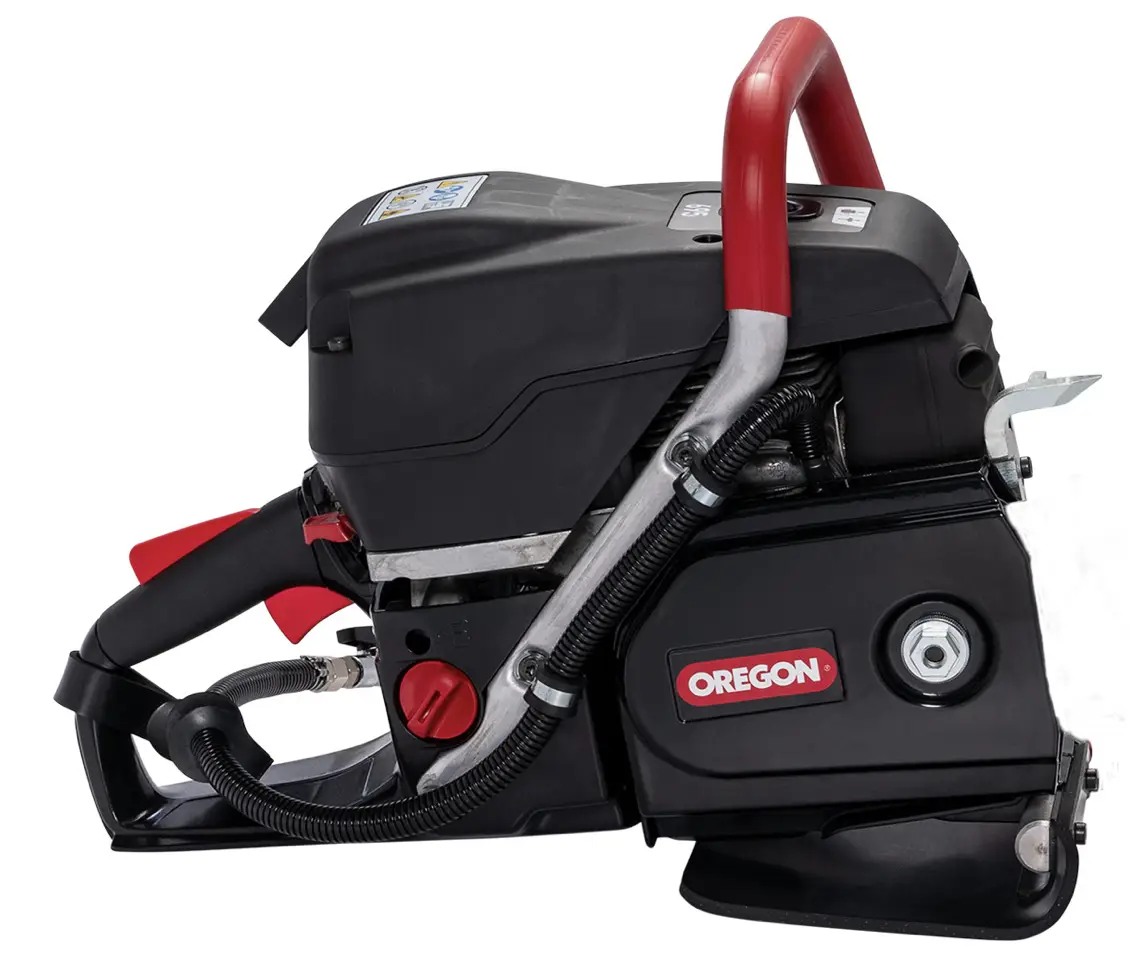

695XL Gas Saw. Powerhead only. Fits FORCE3 guidebars and diamond chains, which are available separately.
The 695XL features an easy-to-start engine with a higher energy ignition system and durable, long-lasting components including a new muffler, carburetor, and piston and cylinder.
Based on the best-selling 695 saw platform, the 695XL is the highest horsepower Oregon gas power cutter for frequent-use by general construction and concrete professionals.Powerhead only
- Use on concrete, stone, masonry, brick, block and more
- Most versatile gas power cutter
- Piston and cylinder lowers engine temperature
- Longer life muffler with reinforced internal baffle
- Easy-to-start with higher energy ignition system
- Easy-to-tune carburetor
- Operates FORCE3 diamond chain up to 16″
- WARNING: This product can expose you to Lead; which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.
| Engine Type | 2-stroke, single cylinder, air cooled |
|---|---|
| Displacement | 4.7 cu in (76.5 cc) |
| Engine Speed Max | 11,500 +/- 500 rpm (max) |
| Engine Speed Idle | 2,800 – 3,200 rpm |
| Fuel Mix Ratio | 50:1 (2%) fuel-to-oil |
| Fuel Capacity | 0.23 gal (0.88 L) |
| Power Type | Gas |
|---|---|
| Use Application | Asphalt Brick Block Concrete Masonry Stone |
| Weight, Saw Only | 21 lbs (9.6 kg) |
| Cutting Depth | up to 20″ (50 cm) |
| Bar Length | 12 in (30 cm) 16 in (40 cm) 20 in (50 cm) |
| Noise Level (Power) | 115 dB(A), (Kwa = 1.0 dB(A)) |
| Chain Length | 12 in (30 cm) 16 in (40 cm) 20 in (50 cm) |
| Noise Level (Pressure) | 104 dB(A), (K=1.0 dB(A)) |
| Horsepower | 6.4 hp (4.8 kW) |
| Front Handle Vibration, ahv eq Concrete Cutting | 3.6 m/s2 (K=0.2 m/s2) |
| Rear Handle Vibration, ahv eq Concrete Cutting | 3.1 m/s2 (K=0.2 m/s2) |
| Front Handle Vibration, ahv eq Pipe Cutting | 5.62 m/s2 (K=0.2 m/s2) |
| Rear Handle Vibration, ahv eq Pipe Cutting | 5.28 m/s2 (K=0.2 m/s2) |
| Water Supply (Min) | 20 psi (1.4 bar) |
| Water Flow Req (Min) | 2 gpm (8 lpm) |
| Unit of Measure | Each |
|---|
