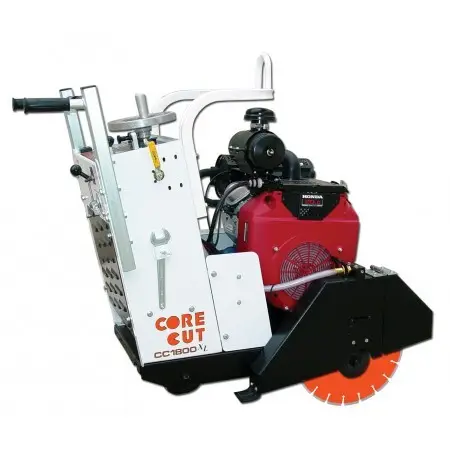

| CC1823BVXL-S – CC1800XL Medium Walk Behind Saw – Self propelled – 23HP 20″ Gas |
14”-20” Blade Capacity / Gasoline / Electric / Hydraulic / Propane
Electric start option on Honda and Briggs Vanguard models
Pull start backup on Briggs Vanguard models
Push or self propelled drive
Easy access to battery with heavy duty isolator switch to prevent battery drain
Screw feed raise and lower
Left or right side sawing
Lifting hook standard on all models
Self aligning blade shaft bearings
Specifications:
| Maximum depth of cut with 14” blade: | 4-5/8” |
| Maximum depth of cut with 18” blade: | 6-5/8” |
| Maximum depth of cut with 20” blade: | 7-5/8” |
| Blade shaft RPM: | 2,600 |
| Blade shaft diameter: | 1-1/4” |
| Arbor Size: | 1” w/drive pin |
| Blade shaft drive: | 3 belt for 11.7HP, 4 belt other models |
| Blade mounting: | Right or Left |
| Transmission (self propelled): | Eaton Model 6 |
| Drive Speed: | 0-80 feet/min |
| Fuel Capacity (gas models): | 2 gallons |
| Electric Start (18-23 HP model): | Standard |
| Low Oil Alert: | Standard |
| Tach/Hour Meter (18-23 HP models): | Standard |
